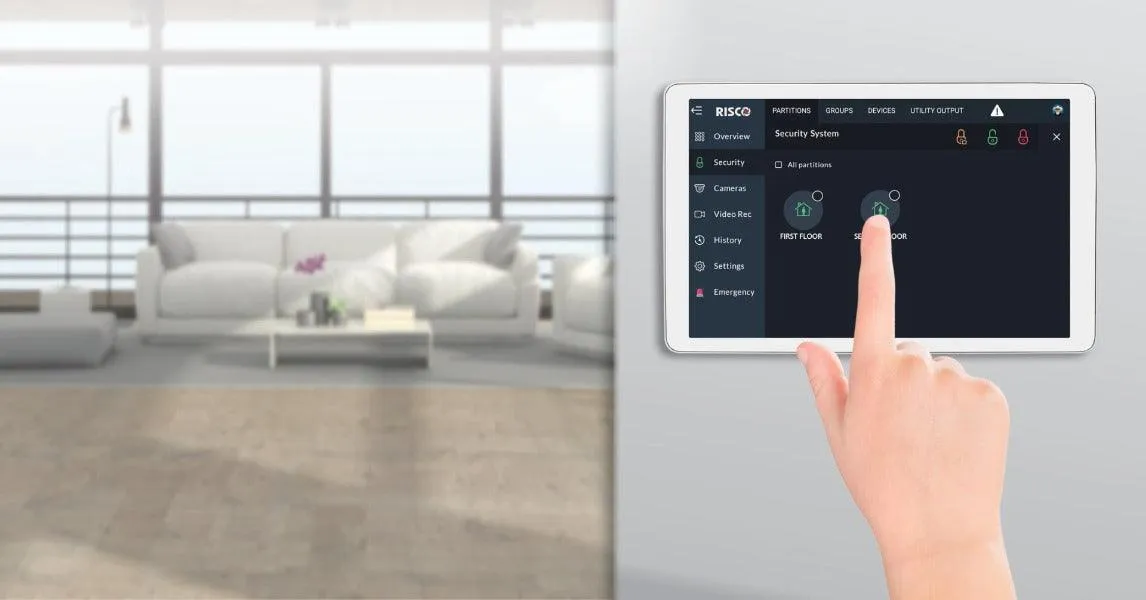

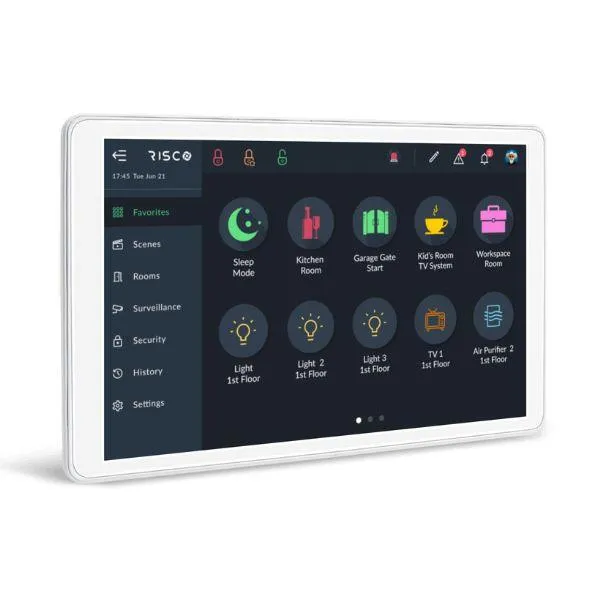

Risco new RisControl Touchscreen Keypadis an 8-inch Touchscreen that incorporates Smart Home, Alarm, Surveillance (Cameras and NVR) and Z-Wave smart home devices in one user friendly interface, providing an exceptional user experience, ease of use, and a fully customizable interface.
Model - RP432KPTZAUA
Features
RisControl is a responsive, high resolution 8 touchscreen keypad, offering intuitive easy to use interface. With RisControl the user can control all alarm and cloud-based solutions from RISCO Group from one access point.
With a clear overview of the system status, easy arm/disarm functionality and the option to view live video and recordings from the VUpoint Video Solution. RisControl communicates via the System Bus (RS-485) with the control panel.
In addition to acting as the Smart home gateway, the new RisControl can also act as a touchscreen keypad.
The RisControl user interface offers users complete control over the alarm, video, and Smart Home. Utilizing the straightforward wizard and powerful rule engine of RisControl, users can set up three types of automation: manual scenes, scheduled automation, and triggered automation, using a variety of smart home devices as well as detectors.
****The RisControl cannot be used as a programming keypad****
Specifications
| CPU | A83T Octa-Core Cortex A7 |
| RAM | 1G DDR3L |
| FLASH | 8G EMMC |
| DISPLAY | 8 Inch IPS |
| RESOLUTION | 800x1280 |
| ILLUMINATION | 300 cd/m2 |
| TYPE OF TOUCH | Capacitive touch, support 5-point touch |
| SPEAKER | 8 Ohm / 1W |
| WI-FI | 802.11 b/g/n 2.4 GHz |
| USB | Type C -Jack, Slave mode (USB 2.0) |
| SYSTEM INTERFACE | RS-485 |
| PROTECTION | Wall Tamper |
| DIMENSIONS | 208 x 129 x 24mm |
| OPERATING VOLTAGE | 13V 10% |
| CURRENT CONSUMPTION | 13V 10%, 200 mA typical, 300mA max. |
| OPERATING TEMPERATURE | -10C to 55C |
| STANDARD | EN50131-3, Grade 3 Environmental Class II, PD 6662:2017 |
